Photos of Miscellaneous Lasers, Components, and Accessories

These are all the assorted random lasers and bits and pieces of lasers that don't conveniently rate a page of their own. :-)

(Photos and descriptions provided courtesy of: Curt Graber (cgraber@fwi.com)).

Helium-Neon Lasers.

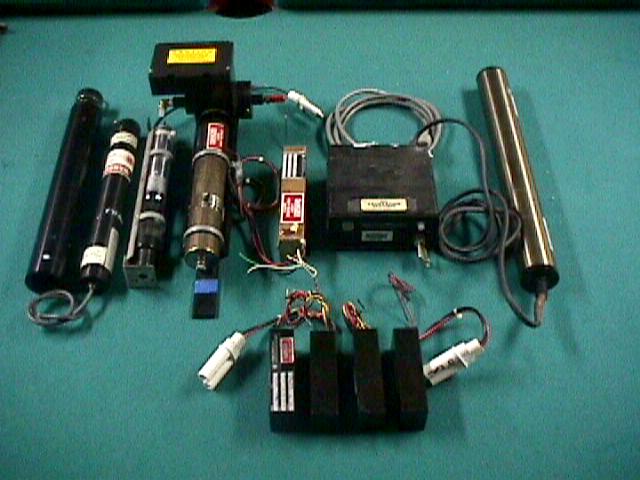

- View 01 - Various HeNe laser tubes, 3 to 25 mW output and PSUs, 12 VDC and 120/240 VAC.
Diode Lasers.

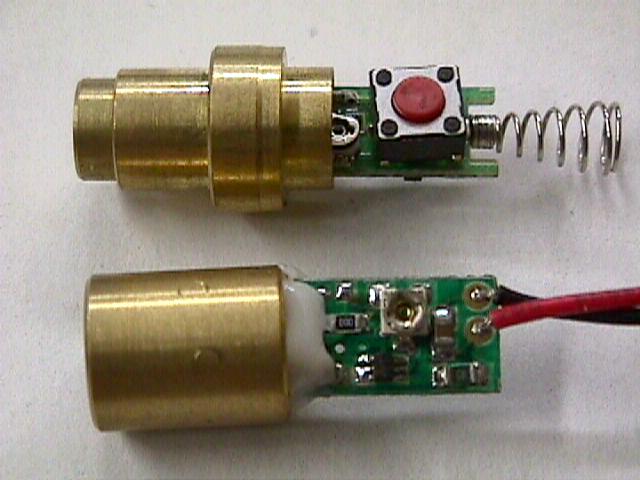

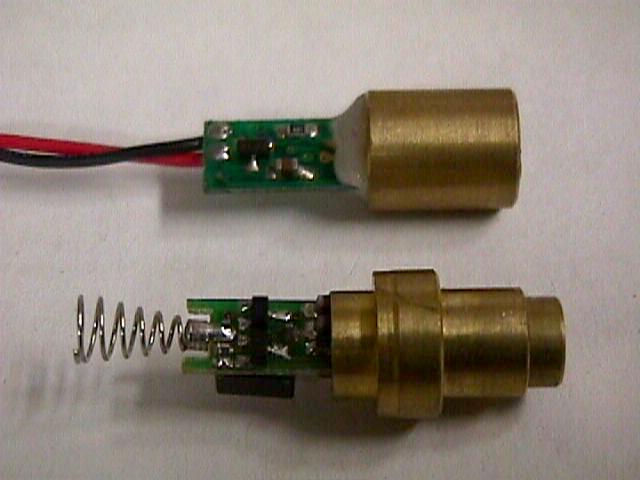

- View 01 - Guts of laser pointer/diode laser modules, top view.
- View 02 - Bottom view.

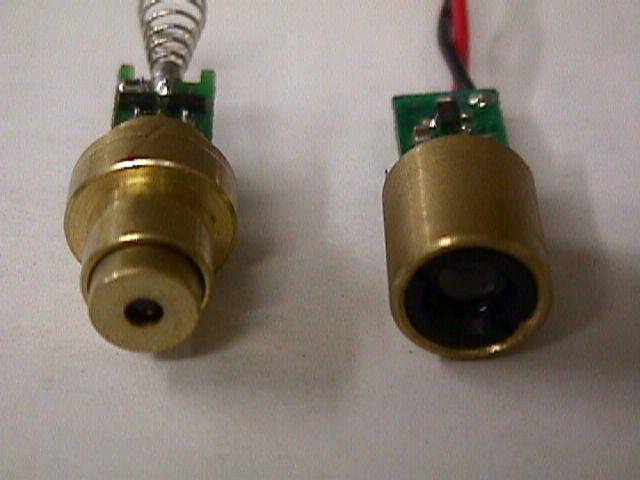

- View 03 - Front view.
Barcode Scanner Using HeNe Laser.

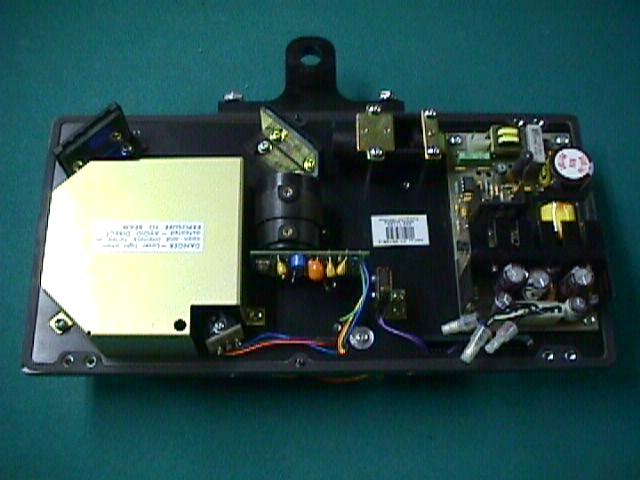

- View 01 - Barcode scanner system with 1 mW Hene laser and some neat optics and other pieces view.

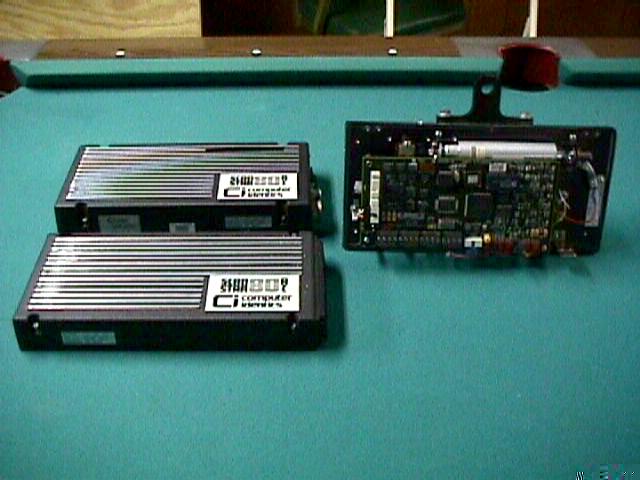

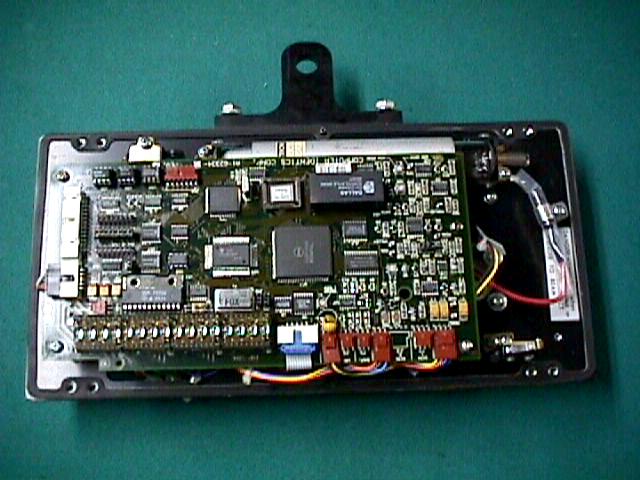

- View 02 - Processor unit.

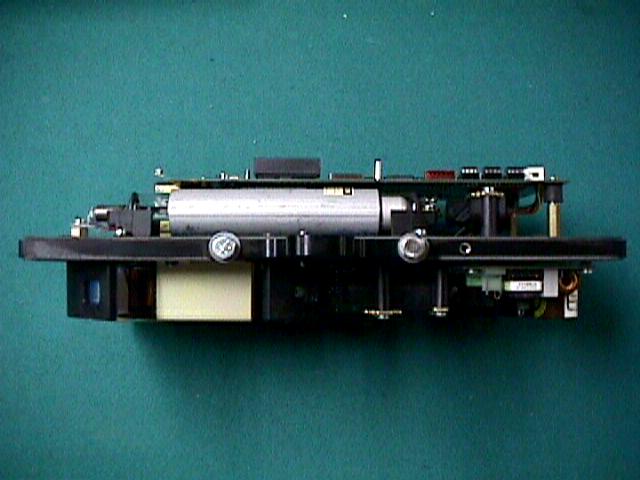

- View 03 - Optics assembly, side view.
- View 04 - HeNe laser and beam delivery to optics table, side view.
Assorted Laserdisc Player Components.

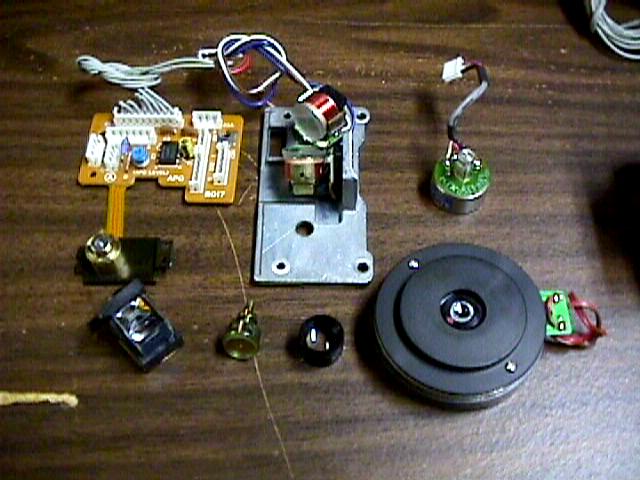

- View 01 - Contents of commercial laserdisk player optical pick-up: (top/left-closkwise) 780 nm 4 mw diode and power driver board, optics and galvos for beam delivery (open loop), photo power cell (power meter), electromagnetic focus optic, colimating lens, high reflector mirror, 80/20 prism/cube beamsplitter.

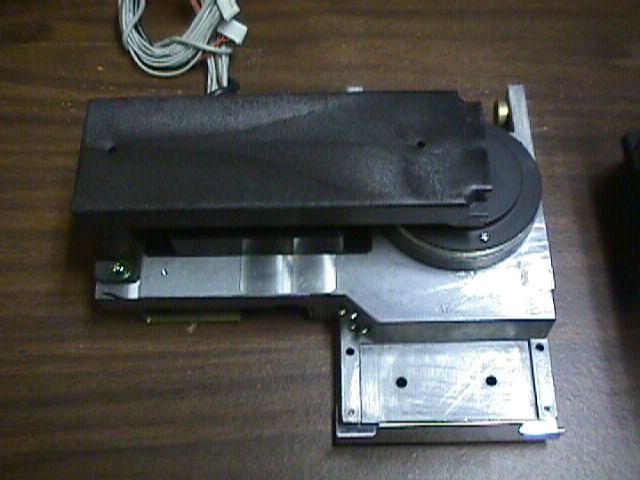

- View 02 - Laserdisc player optical pickup assembled.
Assorted Laser Printer Components. These parts were removed from a large frame high speed laser printer (drum size: 18" diameter x 36" wide!!).

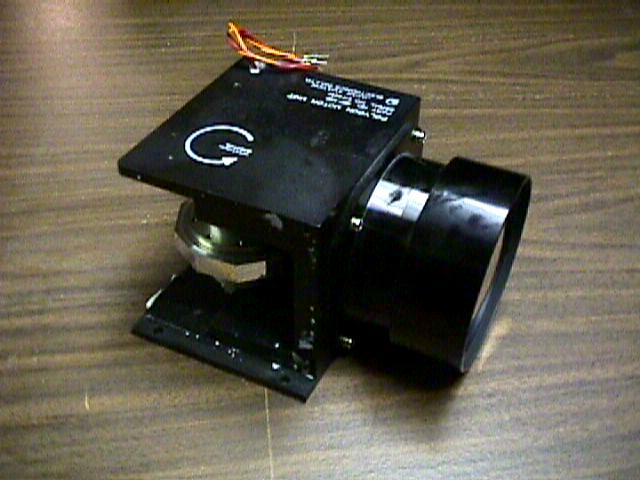

- View 01 - Polygon scanner (10 sided mirror) and primary lens (f.8).

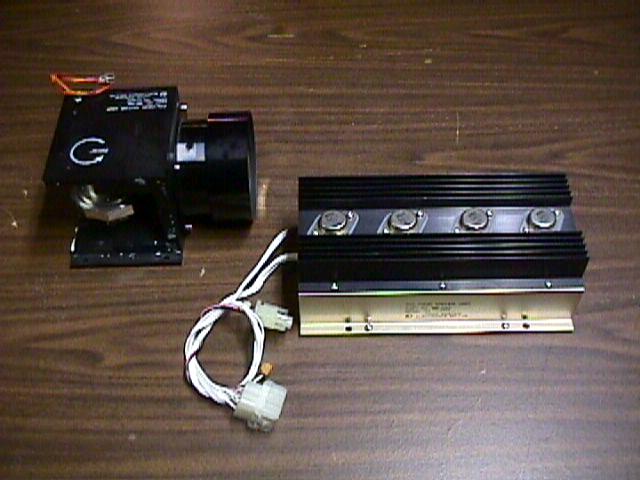

- View 02 - Polygon scanner with driver board.

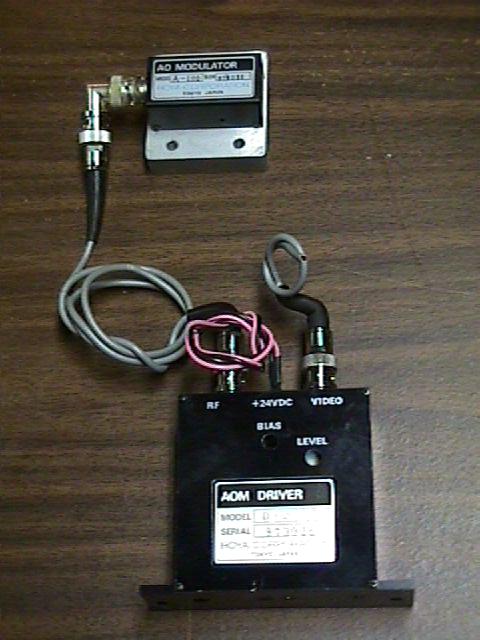

- View 03 - AO modulator with AOM driver module (video in and RF out).

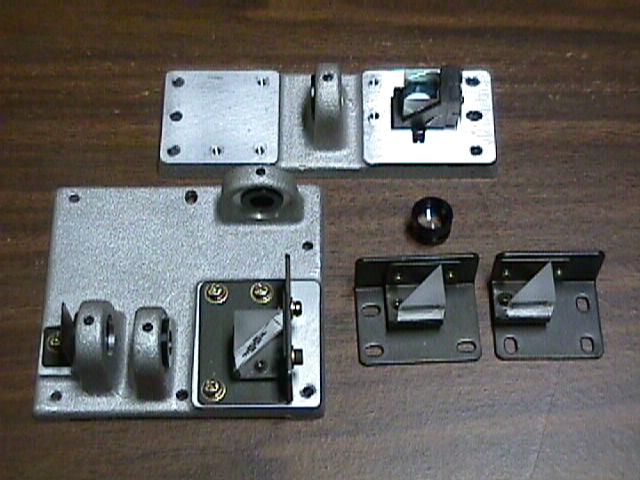

- View 04 - Various prisms and optics from printer.
GTE/Sylvania Q-switch.

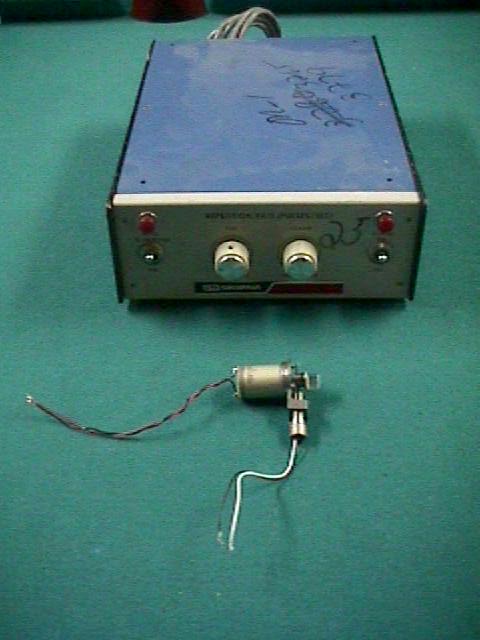

- View 01 - Driver module and rotary prism Q-switch.

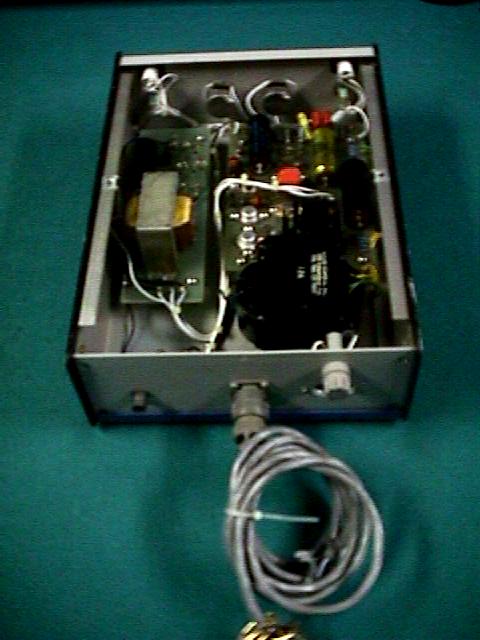

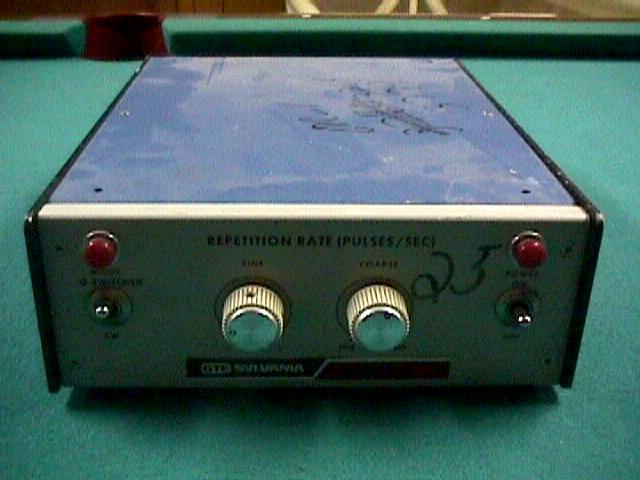

- View 02 - Driver module, front view.
- View 03 - Driver module, top rear view.
Curt's custom Beam Scanner System
- View 01 - Scanner system with GS 100's and mounts.

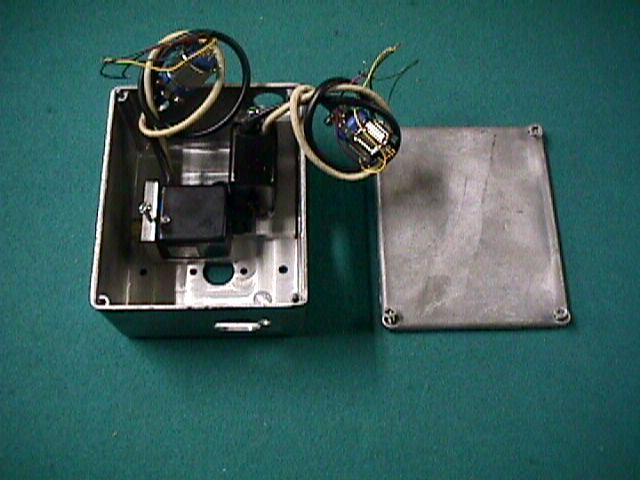

- View 02 - Closeup view.
Dye Laser Glassware.

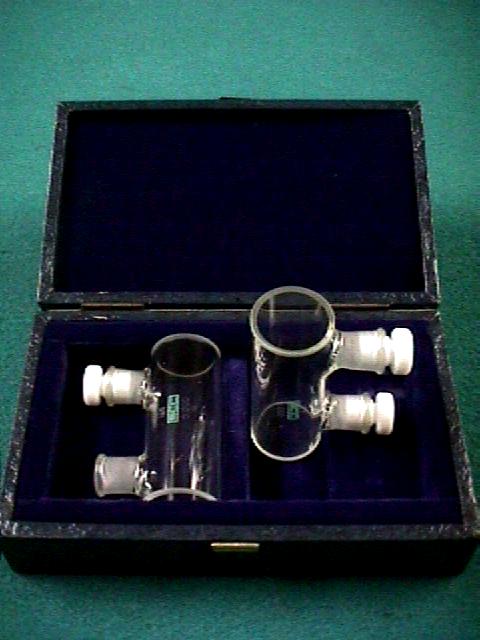

- View 01 - Dye laser cavity glassware modules.
Coherent Laser Power Meter.

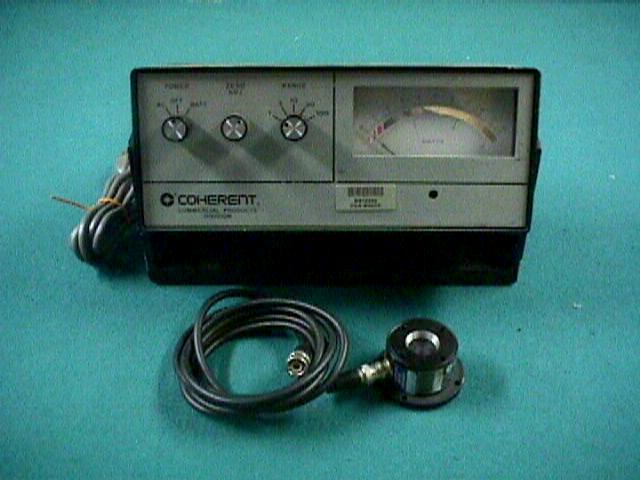

- View 01 - Power meter with liquid cooled puck sensor 100 mW to 100 W range.
