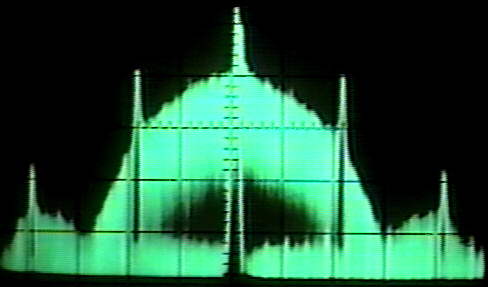

Off air 10 Ghz 10 Mb/s Ethernet signal as received over a 5+ mile path.
5 Mhz per horizontal division, 10 db per vertical division.

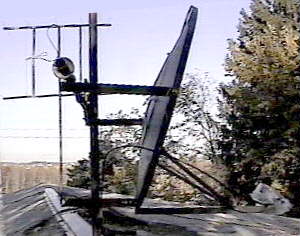

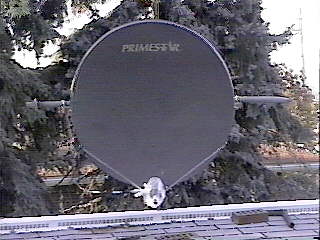

30 inch offset fed dish on one end of path 12 db gain horn on other end of path.
Estimated receive signal level, approx. -40 dbm.

70 Mhz demodulator and IF strip is from a junked 4 Ghz satellite receiver!
